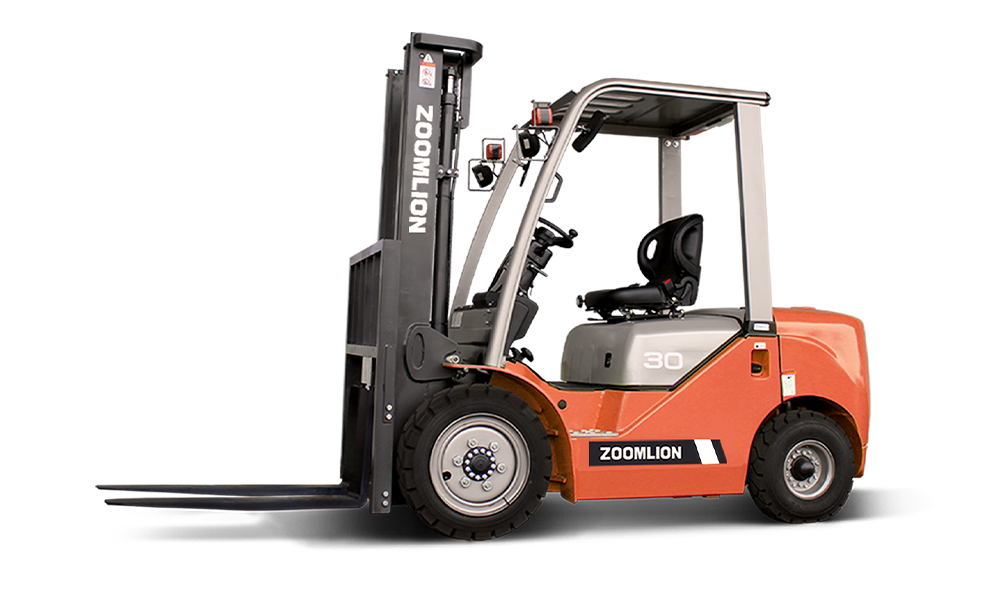

PowerDiesel
-
Rated Capacity5013Ib-Mast S480/7716lb-Mast M300 (Optional)
-
Max. Lifting Height15.75 Ft
Japanese Kubota Euro5 diesel engine with EPA certified, widely used in Europen and North American countries.
Japanese Kubota Euro5 diesel engine with EPA certified, widely used in Europen and North American countries.
Roomy foot space of 1.06 meters wide enables a comfort operation. Hydraulic controls are located besides display allowing easy right-side entry and exit.
“Orlandi” radiator system from Italy offers ample reliability by preventing overheating and saving the oil consumption.
LED Display offers useful information, USB charger and power outlet are special designed for the convenience of operator.
SHIMADZU pump and valve, EATON oil pipe ensure precise control and durable lifetime.
Wide-view mast allows operator to see the forks tips in any position, helping to enhance safety and reducing operator fatigue.
| Characteristics | ||
| Power | Diesel | |
| Rated Capacity | 5013Ib-Mast S480/7716lb-Mast M300 (Optional) | |
| Load Center | 24In | |
| Max. Lifting Height | 15.75 Ft | |
| Free Lifting Height | 3.45 Ft | |
| Fork Size LxWxH | 3.5x0.41x0.16 Ft | |
| Mast Tilting Angle Forward/Backward | 6/6 ° | |
| Min. Turing Radius | 8.02 Ft | |
| Min right angle stalking width | 26.79 Ft | |
| Overhead Guard Height | 7.12 Ft | |
| Height from Seat to Overhead Guard | 3.3 Ft | |
| Performance | ||
| Max. Traveling Speed(loaded) | 12.4 mph | |
| Max. Lifting Speed(loaded/unloaded) | 16.14/16.93 in/s | |
| Max. Traction/Gradeability (loaded) | 18/20 kN/% | |
| Min. Right Angle Stacking Aisle Width | 14.45 Ft | |
| Dimensions | ||
| Overall Length(without fork) | 9.01 Ft | |
| Overall Width | 4.04 Ft | |
| Mast Lowered Height | 7.32 Ft | |
| Mast Extended Height | 19.6 Ft | |
| Chassis | ||
| Tyre(Front) | 28x9-15-14PR | |
| Tyre(Rear) | 6.50-10-10PR | |
| Wheelbase | 5.58 Ft | |
| Tread(Front/Rear) | 3.28/3.18 Ft | |
| Curb Weight(None-load) | 10692.42 Ib | |
| Powertrain | ||
| Battery(Voltage/Capacity) | 12/90 V/Ah | |
| Engine(Model) | Kubota V2403-CR-E5B | |
| Engine(Rated power) | 42.6/2400 kW/r.p.m | |
| Engine(Rated torque) | 195.6/1500 Nm/r.p.m | |
| Engine(Cylinder amount) | 4 | |
| Engine(Bore×Stroke) | 0.285×0.336 Ft | |
| Engine(Displacement) | 2.434 L | |
| Fuel Tank Capacity | 70 L | |
| Working Pressure | 17.5 MPa | |
