> Products Center > Earthmoving > Excavator > ZE500G
Excavator

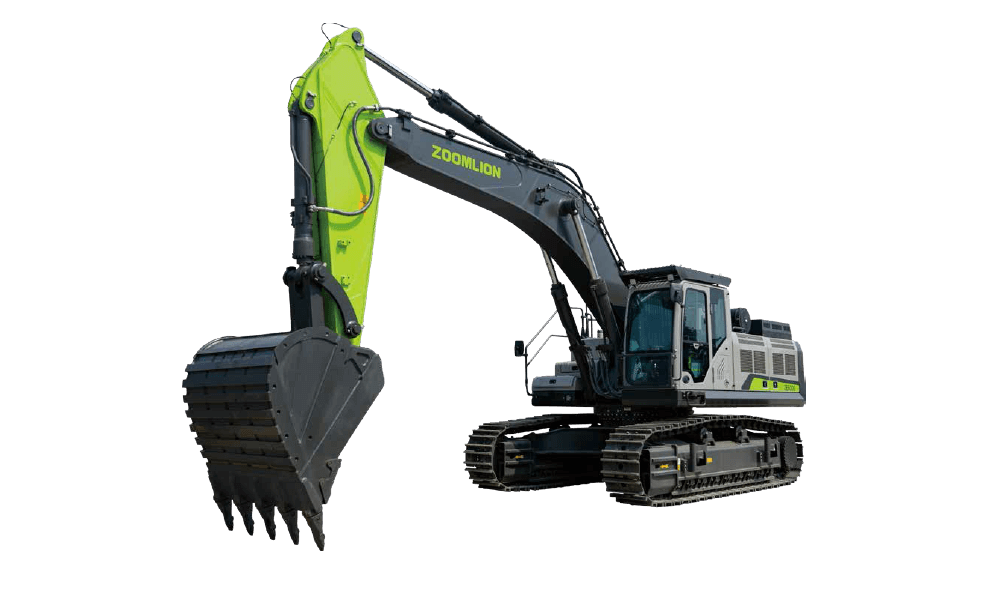

ZE500G
BROCHURE
ZE500G
  • Operating Weight
    112435.8 lb
  • Standard bucket capacity
    3.47 yd³
  • Slewing Speed
    -
  • HIGHLIGHT
  • SPECS
BROCHURE CONTRAST
HIGHLIGHT
  • Strong and efficient

    • High power engine matched with large-displacement main pump and combined with customized accurate control technology, which improves the fuel efficiency by more than 11%;

    • Designed for mining conditions with high digging force;

    • The whole machine is upgraded in all respects, with stronger loading capacity and a standard rock bucket of 2.65 m³ for more efficient excavation.

  • Safe and reliable

    • Standard front lower protection and top protection, providing drivers with a safer environment;

    • The whole machine body is enlarged, meeting the requirements of heavy duty in mining;

    • The design life of key structural parts can reach 20000h.

  • Comfortable driving

    • New pressurized quiet cab, with good sealing and noise reduction effects, and more comfortable driving;

    • The frequently operated keys are at your fingertips, and the user-friendly design and multi-functional features bring you the feeling of driving a car.

ZE500G
Specs
Basic Technical Data
Operating Weight 112435.8 lb
Standard bucket capacity 3.47 yd³
Traveling Speed(high/low) 3.1/1.9 mph
Max. Drawbar Pull 90822.8 lbf
Engine
Engine Manufacturer Cummins
Engine Model X12
Rated Power 399.6/2100 hp/rpm
Dimensions
Length 460.2 in
Width 142.1 in
Height 157.1 in
Tail Slewing Radius 149.1 in
Track Gauge 108.3 in
Length of Track On Ground 173.2 in
Operating Range
Max. Digging Reach 432.4 in
Max. Digging Depth 273.4 in
Max. Digging Height 381.3 in
Max. Dumping Height 261.6 in
