> Products Center > Concrete > Truck Mounted Pumps > 50X-6RZ
Truck Mounted Pumps

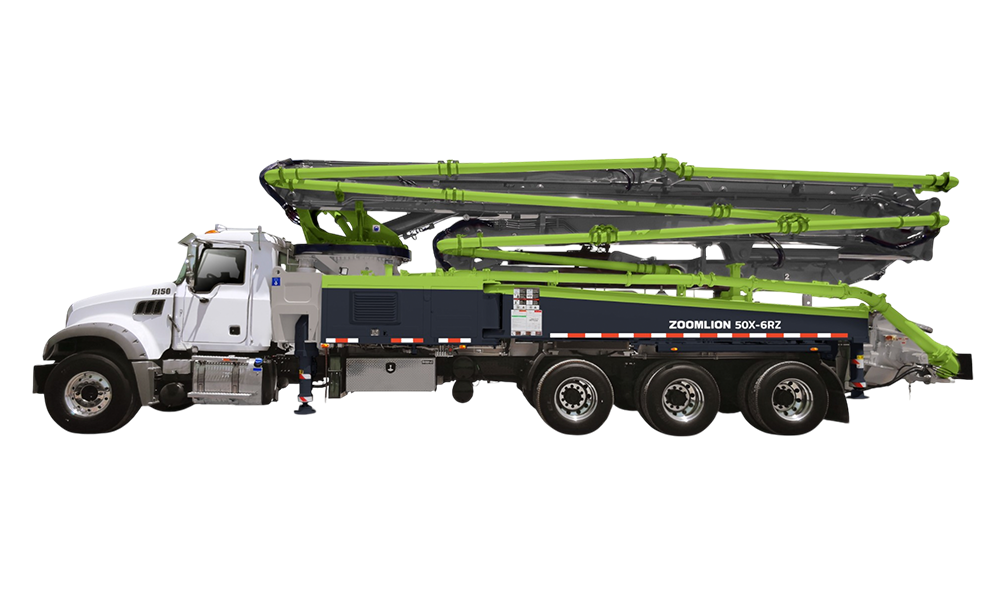

50X-6RZ
BROCHURE
50X-6RZ
  • Maximum theoretical output
    222 yd³/h
  • Maximum pressure on concrete
    88 bar
  • Concrete cylinders
    260x2100 mm
  • SPECS
BROCHURE CONTRAST
50X-6RZ
Specs
BOOMPumping Unit Technical Datal
Maximum theoretical output 222 yd³/h
Maximum pressure on concrete 88 bar
Concrete cylinders 260x2100 mm
Concrete hopper capacity 700 L
Hydraulic circuit open
Pumping Unit Technical Datal
Pipeline diameter 125 mm
Maximum vertical reach 49.3 m
Maximum horizontal distance(from center of slewing axis) 44.3 m
Minimum unfolding height 13.8 m
Section numbers 6
Rotating angle ±270°
End hose length 3 m
