Max Length (m)60
-
Tip Load (t)2.4
-
Max Load (t)2025-12-16 00:00:00

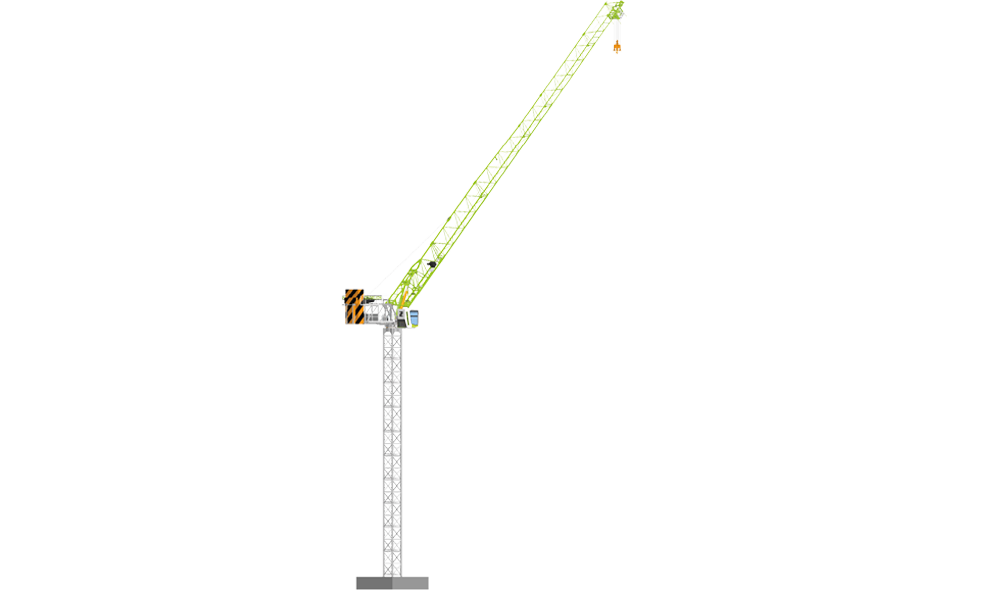

Compared to traditional luffing jib crane, the mounting of A frame, luffing mechanism and rope-pulley system is not required.
The jib root, hydraulic cylinder, pump station and counter jib are combined transportation unit. The lifting and erect. & dis. efficiency can be increased by 50%.
Each jib section can be disassembled in the air.
Fewer types of parts, light weight, small size, easier transportation.
Compared to tranditional luffing jib crane, 1*40HQ can be saved for the transportation of upper part.
Max. 87° radius in luffing model, solve the close lifting problem.
Max. park range 15m in luffing model out of service, supper short counter jib, better obstacle avoidance ability.
Hydraulic luffing dual interlocking technology, triple protection function, anti-cylinder leakage, preventing fuel line bursts.
ETI digital control system, real time feedback, real time control.
| Max Length (m) | 60 | |
| Tip Load (t) | 2.4 | |
| Max Load (t) | 2025-12-16 00:00:00 | |
